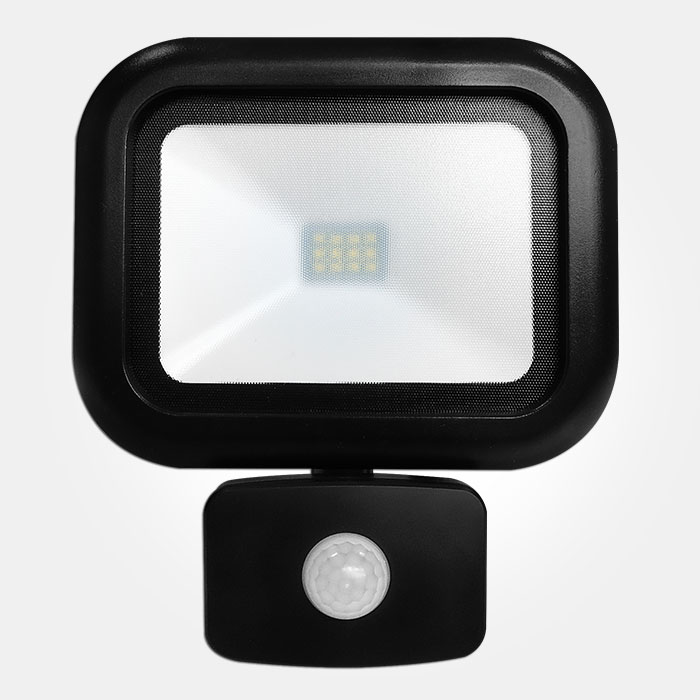

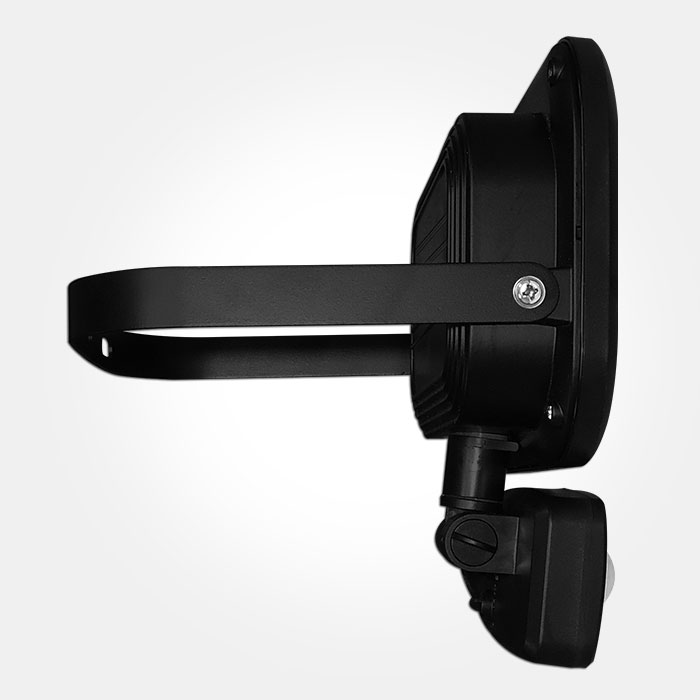

ELEDF10PIR

10W LED floodlight with 120° PIR

Black | 10W | 4000K | 850 lm | 25,000 hrs | IP54 | A+ Rated



icon-10w  icon-4000k  icon-850lm  icon-25000hrs  icon-ip54  icon-aplus  icon-led  icon-120pir  icon-2year



ELEDF10PIR

Black | 10W | 4000K | 850 lm | 25,000 hrs | IP54 | A+ Rated



icon-10w  icon-4000k  icon-850lm  icon-25000hrs  icon-ip54  icon-aplus  icon-led  icon-120pir  icon-2year



SKU: 5013845048415 Category:
Categories: Floodlights
SKU: 5013845048415
More Information
Features
  • Tempered glass diffuser
  • Polycarbonate construction
  • Pre-wired with 80cm cable
  • Vertically and horizontally adjustable PIR
  • Time on adjustment: 10 sec ± 3 sec – 10 min ± 3 min
  • 120° detection angle
  • Adjustable detection range between 5-9m
  • Lux level adjustments: 5 Lux ~ 2000 Lux
  • M.O.M: 1 / O.P.Q: 12
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 850 lm
Lumens from chip (no diffuser) 1000 lm
Useful lumens 800 lm
Rated Wattage 10W
Rated luminous flux 800 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 10W
Rated lamp lifetime 25,000 hrs
Lamp power factor 0.5
Lumen maintenance factor at end of nominal life 70%
Starting time 0.5s
Colour rendering 80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 450cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
Downloads
FAQ

What is the detection area?

120° – approximately 9m at an installation height of 2.5m

What adjustment controls are there?

Lux, time and sensitivity can be adjusted. The controls are on the rear of the sensor head
