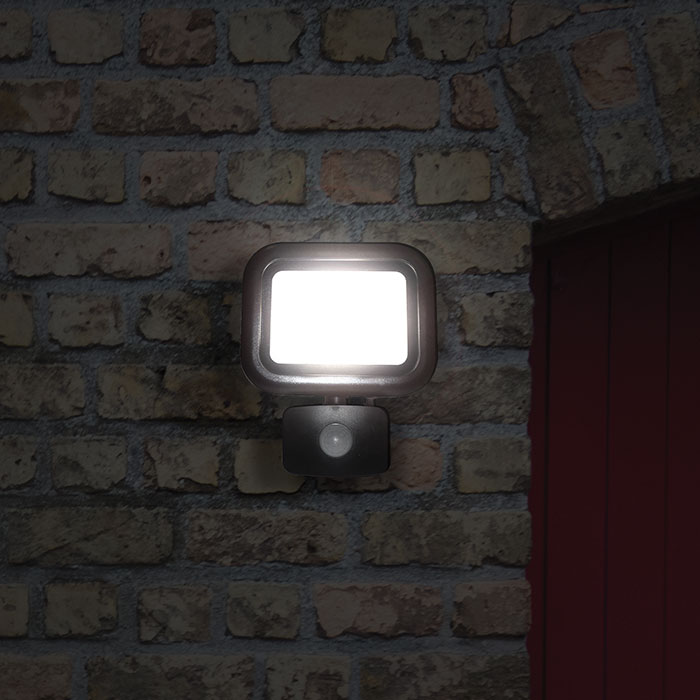

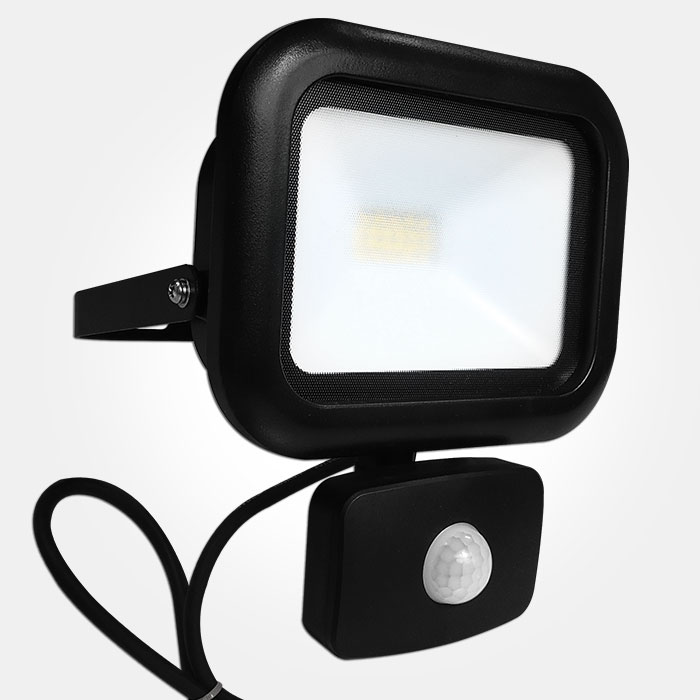

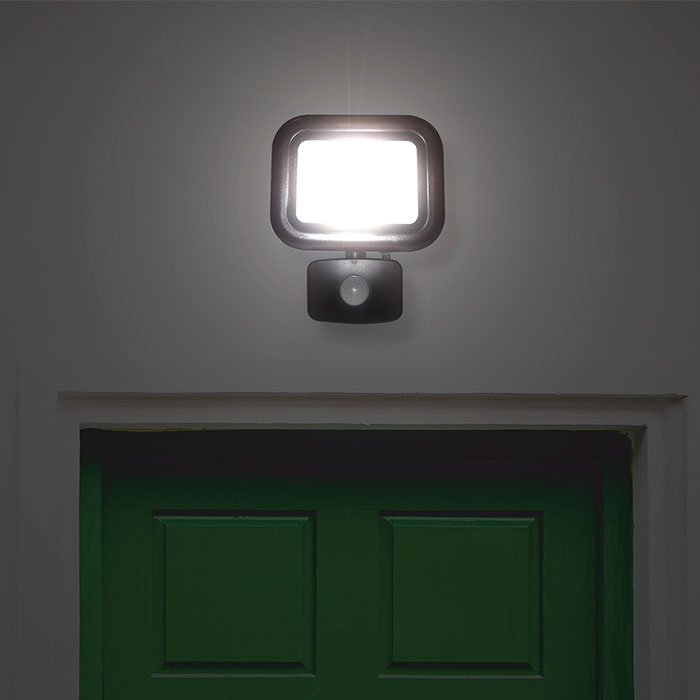

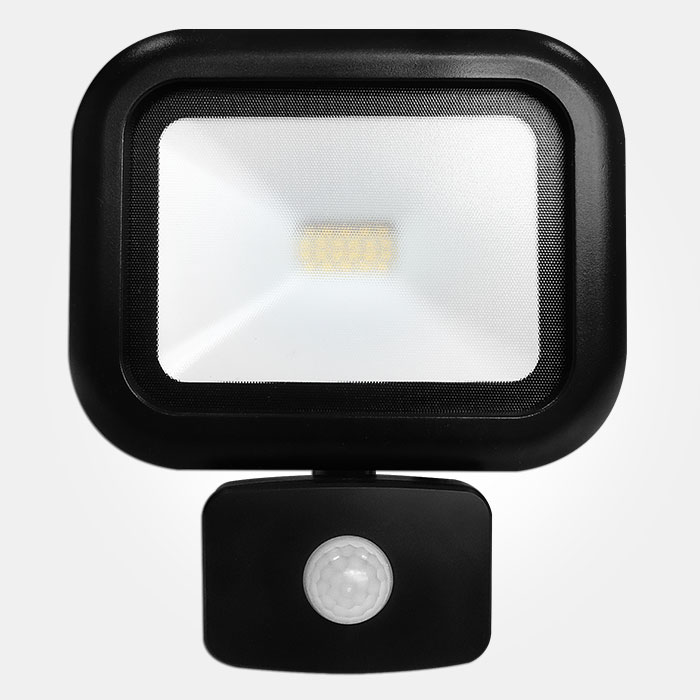

ELEDF20PIR
DISCONTINUED - 20W LED floodlight with 120° PIR
OBSOLETED PRODUCT
Black | 20W | 4000K | 1700 lm | 25,000 hrs | IP54 | A+ Rated
ELEDF20PIR
OBSOLETED PRODUCT
Black | 20W | 4000K | 1700 lm | 25,000 hrs | IP54 | A+ Rated
Features
- Tempered glass diffuser
- Aluminium construction
- Pre-wired with 80cm cable
- Vertically and horizontally adjustable PIR
- Time on adjustment: 10 sec ± 3 sec – 10 min ± 3 min
- 120° detection angle
- Adjustable detection range between 5-9m
- Lux level adjustments: 5 Lux ~ 2000 Lux
- M.O.M: 1 / O.P.Q: 12
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 1700 lm |
| Lumens from chip (no diffuser) | 2000 lm |
| Useful lumens | 1600 lm |
| Rated Wattage | 20W |
| Rated luminous flux | 1600 lm |
| Nominal life time of the lamp | 25,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 20W |
| Rated lamp lifetime | 25,000 hrs |
| Lamp power factor | 0.5 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | 0.5s |
| Colour rendering | 80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 1000cd |
| Rated beam angle | 120° |
| Voltage / Frequency | 240V~50Hz |
| Lumens per watt | Up to 85 lm / W |
| Weight (kg) | 0.708 |
| TSI Code | 404094007 |
| Not suitable for accent lighting | |
Downloads
FAQ
What is the detection area?
120° – approximately 9m at an installation height of 2.5m
What adjustment controls are there?
Lux, time and sensitivity can be adjusted. The controls are on the rear of the sensor head.
