FLD10PIRWH

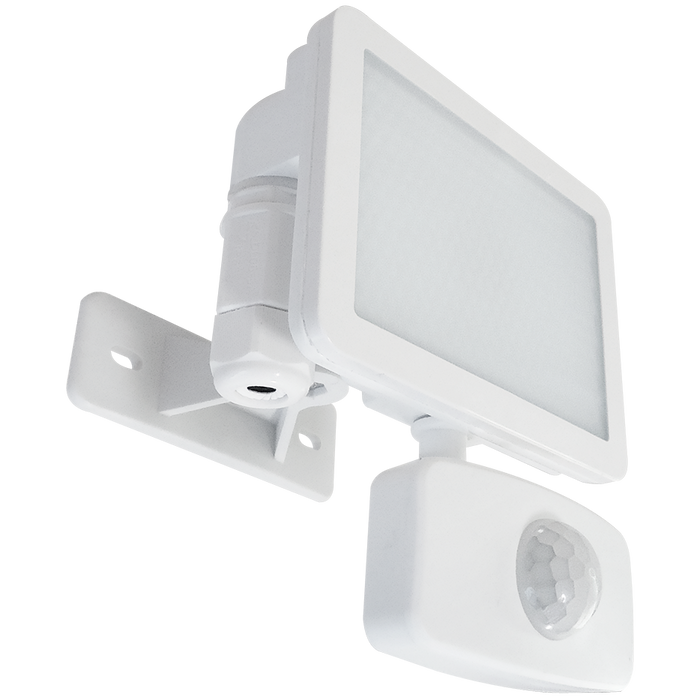

10W LED floodlight with 120° PIR
White | 10W | 4000K | 800 lm | 25,000 hrs | IP44 | 120° PIR
FLD10PIRWH
White | 10W | 4000K | 800 lm | 25,000 hrs | IP44 | 120° PIR
Features
- Aluminium & polycarbonate construction
- Horizontally and vertically adjustable bracket
- Detachable bracket allowing easy installation
- Fixed IP rated connector for wiring direct to the floodlight
- Terminal connector can be removed for ease of wiring
- Horizontally and vertically adjustable PIR with 120° detection angle
- Time on adjustment 10 Sec ± 3 sec – 10 mins ± 3 mins
- Detection range 9m
- Lux level adjustments: 5 Lux ~ 2000 Lux
- M.O.M: 1 / O.P.Q: 20
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 800 lm |
| Lumens from chip (no diffuser) | 900 lm |
| Useful lumens | 740 lm |
| Rated Wattage | 10W |
| Rated luminous flux | 740 lm |
| Nominal life time of the lamp | 25,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | 12500 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 10W |
| Rated lamp lifetime | 25,000 hrs |
| Lamp power factor | >0.9 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | <0.5s |
| Colour rendering | ≥80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 255cd |
| Rated beam angle | 120° |
| Voltage / Frequency | 240V~50Hz |
| Not suitable for accent lighting | |
