HBCIR150PP

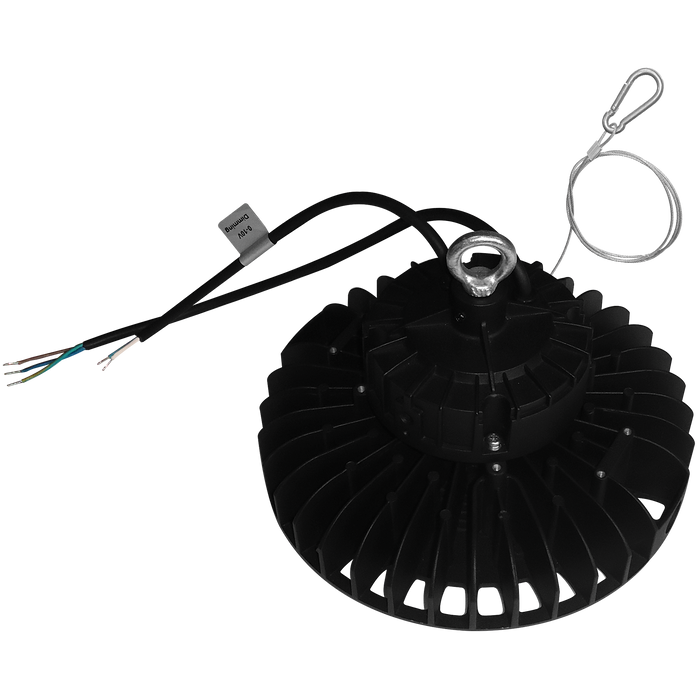

150W LED circular high bay with Lifud driver
Black | 150W | 3500K | 25400 lm | 50,000 hrs | IP65 | IK08
HBCIR150PP
Black | 150W | 3500K | 25400 lm | 50,000 hrs | IP65 | IK08
Features
- Aluminium housing, glass lens cover
- IK08 rated durable construction
- 1-10V dimmable capability as standard
- Lifud driver
- Supplied with 42cm mains input cable and 33cm 1-10V cable
- 50cm stainless steel safety cable attached
- IES files available
- Philips Lumileds SMD LEDs
- 169 lm / W
- Aluminium reflector sold separately HBCIRDIF90
- M.O.M: 1 / O.P.Q: 1
![](https://www.eterna-lighting.co.uk/wp-content/uploads/2019/06/hbcir150pp_dim.jpg)
![](https://www.eterna-lighting.co.uk/wp-content/uploads/2023/02/ri-110px-replace-led-light-source-pro-e1676633947412.jpg)
![](https://www.eterna-lighting.co.uk/wp-content/uploads/2023/02/ri-110px-replace-control-gear-pro-e1676633971648.jpg)
Specification
Lamp Specifications: | |
---|---|
Luminaire lumens (with diffuser) | 25400 lm |
Lumens from chip (no diffuser) | 29000 lm |
Useful lumens | 21310 lm |
Rated Wattage | 150W |
Rated luminous flux | 21310 lm |
Nominal life time of the lamp | 50,000 hrs |
Colour temperature | 3500K |
Number of switching cycles before premature lamp failure | 25,000 |
Warm-up time up to 60 % of the full light output | Instant full light |
Is this product dimmer compatible? | Yes |
Nominal beam angle | 120° |
Rated power wattage | 150W |
Rated lamp lifetime | 50,000 hrs |
Lamp power factor | >0.9 |
Lumen maintenance factor at end of nominal life | ≥0.80 |
Starting time | <0.5s |
Colour rendering | ≥70 |
Colour consistency | Within a 6 step Macadam ellipse |
Rated peak intensity | 6994cd |
Rated beam angle | 120° |
Voltage / Frequency | 240V~50Hz |
Not suitable for accent lighting |
