LEDLBAY120

120W linear LED luminaire

Black | 120W | 4000K | 14023 lm | 50,000 hrs | IP40 | IK10



icon-120w  icon-4000k      icon-ip40    icon-led  icon-5year

LEDLBAY120

Black | 120W | 4000K | 14023 lm | 50,000 hrs | IP40 | IK10



icon-120w  icon-4000k      icon-ip40    icon-led  icon-5year

SKU: 5013845050531 Categories: ,
Categories: High Bay & Low Bay
SKU: 5013845050531
More Information
Features

Not just a low bay!! Although suitable for use as low bay for warehouse lighting the aesthetic design also lends itself to installation in public areas. IES files available to enable lighting plans.

Comprehensive range of high performance fittings suitable for low level commercial retail and industrial applications.

PERFECT FOR COMMERCIAL, INDUSTRIAL & RETAIL APPLICATIONS

  • Frosted polycarbonate diffuser
  • Aluminum housing
  • Suspension pack included, max length 1.5m
  • Brackets available separately (see LBB range) for surface mounting or to enable installation with threaded rod
  • Fitted with 1.5m mains input cable
  • M.O.M: 1 / O.P.Q: 4
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 14309 lm
Lumens from chip (no diffuser) 14761 lm
Useful lumens 14023 lm
Rated Wattage 120W
Rated luminous flux 14023 lm
Nominal life time of the lamp 50,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure >15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No

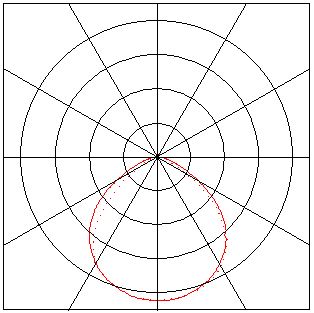

Nominal beam angle 120°
Rated power wattage 120W
Rated lamp lifetime 50,000 hrs
Displacement factor ≥0.9
Lumen maintenance factor at end of nominal life ≥0.8
Starting time Instant Full Light
Colour rendering >80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 7157cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt 117 lm / W
This luminaire contains a light source of class E
Not suitable for accent lighting
