LEDLBAY30

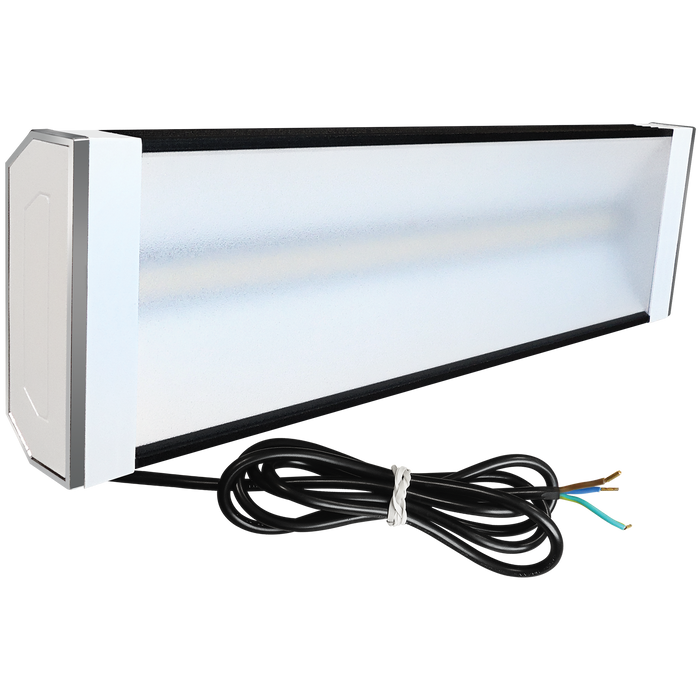

30W linear LED luminaire

Black | 30W | 4000K | 3050 lm | 35,000 hrs | IP40 | A+ Rated



icon-30w  icon-4000k  icon-3050lm  icon-35000hrs  icon-ip40  icon-aplus  icon-led  icon-5year



LEDLBAY30

Black | 30W | 4000K | 3050 lm | 35,000 hrs | IP40 | A+ Rated



icon-30w  icon-4000k  icon-3050lm  icon-35000hrs  icon-ip40  icon-aplus  icon-led  icon-5year



SKU: 5013845050470 Categories: ,
Categories: EternaPro, High Bay & Low Bay
SKU: 5013845050470
More Information
Features

Not just a low bay!! Although suitable for use as low bay for warehouse lighting the aesthetic design also lends itself to installation in public areas. IES files available to enable lighting plans.

Comprehensive range of high performance fittings suitable for low level commercial retail and industrial applications.

PERFECT FOR COMMERCIAL, INDUSTRIAL & RETAIL APPLICATIONS

  • Frosted polycarbonate diffuser
  • Aluminum housing
  • Suspension pack included, max length 1.5m
  • Brackets available separately (see LBB range) for surface mounting or to enable installation with threaded rod
  • Fitted with 1.5m mains input cable
  • M.O.M: 1 / O.P.Q: 10
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 3050 lm
Lumens from chip (no diffuser) 3150 lm
Useful lumens 2700 lm
Rated Wattage 30W
Rated luminous flux 2700 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure >15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 30W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life >0.7
Starting time <0.1s
Colour rendering >80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 1100cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 101 lm / W
Weight (kg) 1.352
TSI Code 404495923
Not suitable for accent lighting
