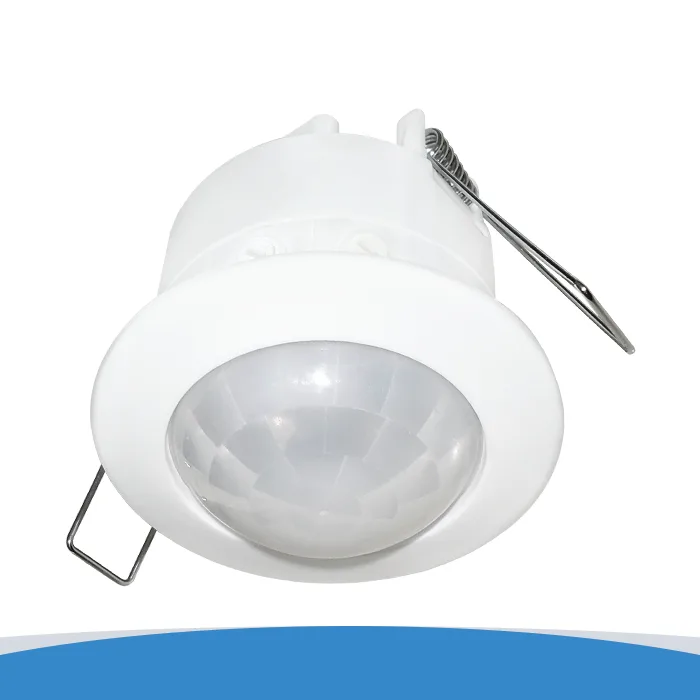

PIRFM360

Flush mounted 360º internal PIR detector

White | IPX4



icon-ipx4  icon-360-pir

PIRFM360

White | IPX4



icon-ipx4  icon-360-pir

SKU: 5013845024952 Category:
Categories: Lighting Controls & Accessories
SKU: 5013845024952
More Information
Features

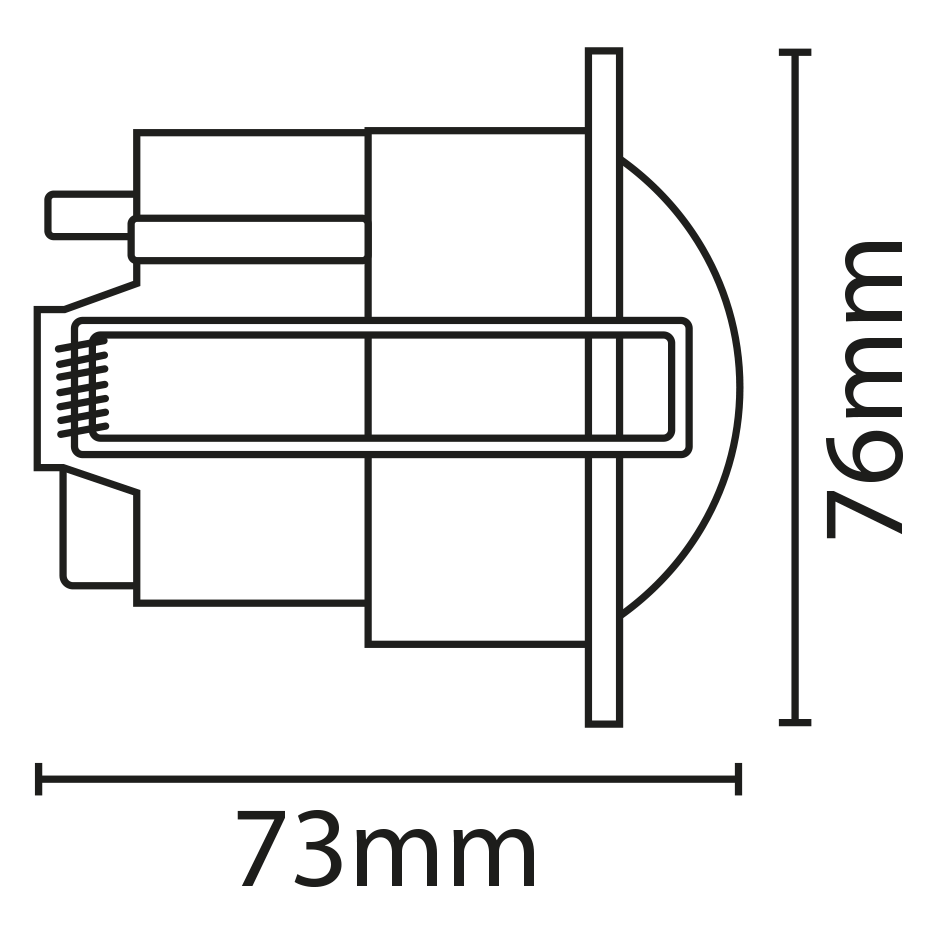

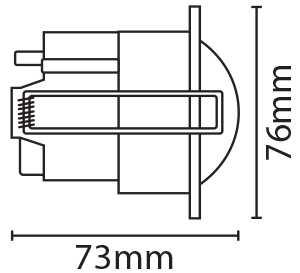

Hole cut out size: 63mm

  • Time on adjustable: 10 sec – 15 min
  • Polycarbonate construction
  • Adjustable lux level
  • 4.5 metre detection zone
  • 360° detection area
  • Max 2000W incandescent / 500W fluorescent load capacity. Max 250W LED load capacity (no more than ten lights)
  • Recessed spring clip flush fixing: unobtrusive when installed
  • M.O.M: 1 / O.P.Q: 4
Specifciation
Weight (kg) 0.138
TSI Code 390011411
Downloads

You will need Adobe Acrobat Reader to access and print PDFs.

FAQ

What size hole cut-out is required?

63mm

Can multiple PIRFM360 be linked to control the same load?

We do not recommend using more than one PIR to control the same load

Does this PIR have a minimum load?

No

What is the maximum load?

2000W incandescent
500W fluorescent
250W LED (maximum ten lights)

What adjustment controls are there?

Lux and time can be adjusted. The controls can be found on the body of the fitting

What is the detection area?

360° – approximate diameter of 4.5m when installed at 3m height
