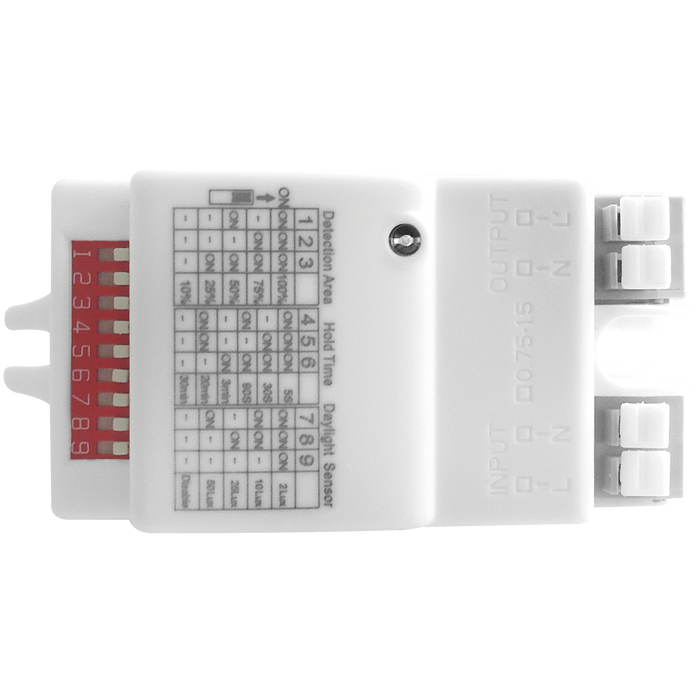

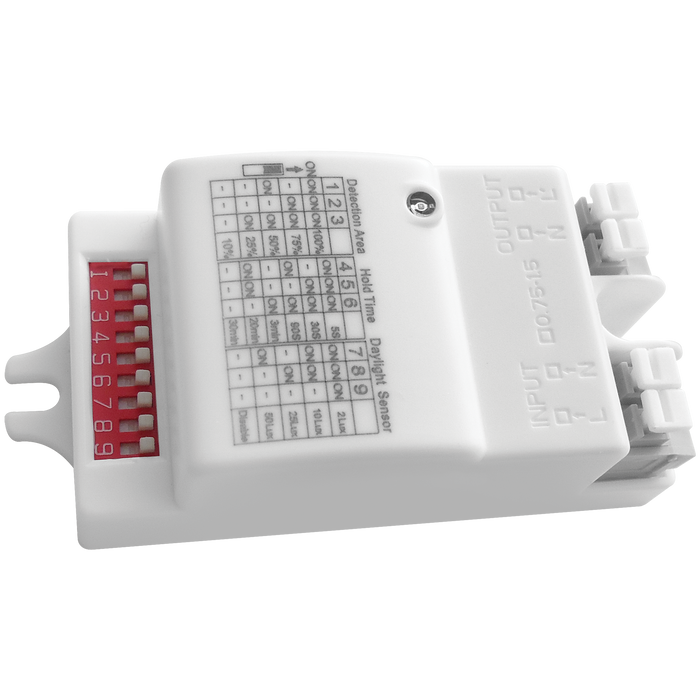

This sensor can either be wired directly into an existing fitting providing there is sufficient space to do so or alternatively it can be installed inside a separate unobtrusive enclosure, see Eterna part code MWCASE.
- Polycarbonate construction
- Rated Load – 800W (resistive), 400W (inductive), 270W (LED)

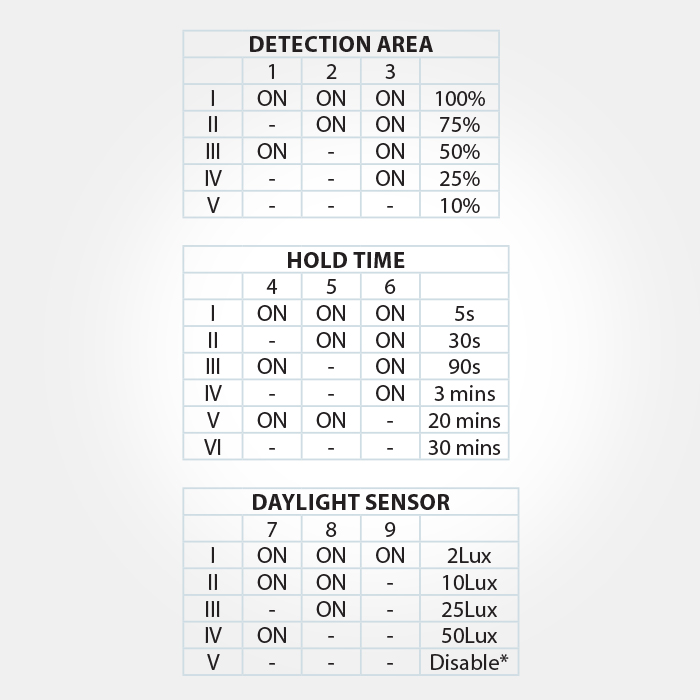

- Adjustable detection angle: up to 150°
- Power consumption: <0.5W
- Adjustable detection range: Max. 6m
- Adjustable time setting: 5 seconds – 30 minutes
- Adjustable Lux control: 2-50 lux
- Push connect terminals: for ease of connection
- M.O.M: 1 / O.P.Q: 150
