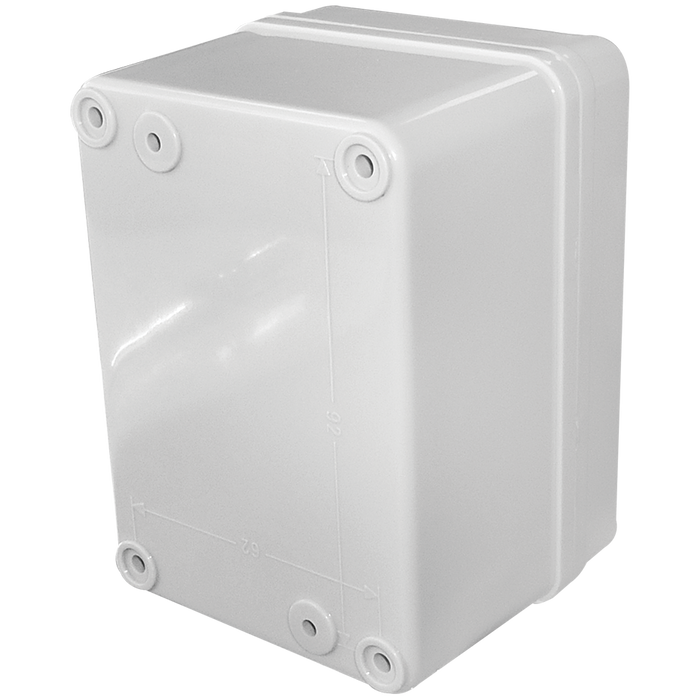

TLS68EX
16 amp electronic outdoor time delay switch
Grey | IP66
TLS68EX
Grey | IP66
Features
- ABS construction

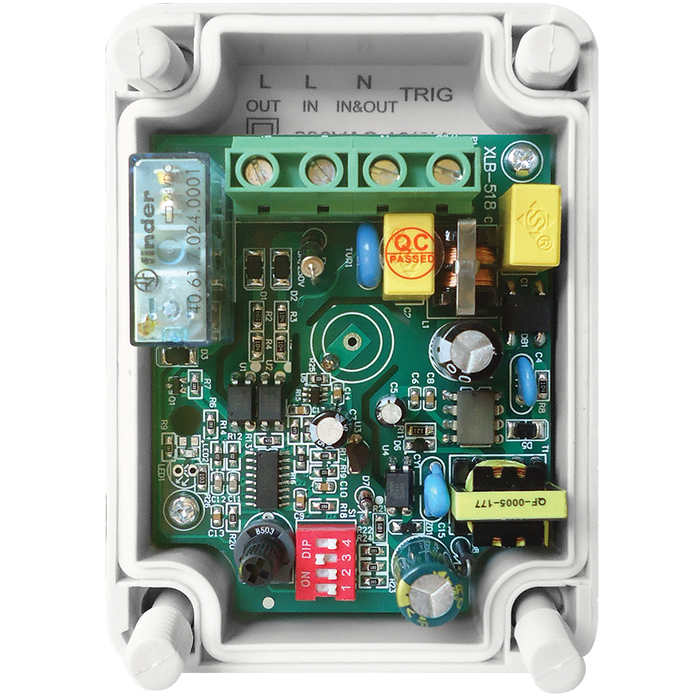

- Multiple accurate time settings using dip switches and rotary adjuster
- Incandescent 16 Amp max
- Fluorescent 6 Amp max
- Compact fluorescent 3 Amp max (maximum six fluorescent lights)
- Low voltage 3 Amp max
- Fans and ventilation equipment 3 Amp max
- Multi point switching, connect two or more units in parallel
- Multi range delay function from 2 seconds to 2 hours: reduces energy consumption
- M.O.M: 1 / O.P.Q: 50
Downloads
FAQ
What is the minimum load for this fitting?
There is no minimum load
What is the maximum load?
Incandescent – 16A
Fluorescent – 6A (maximum six fluorescent lights)
Low energy lighting / CFL – 3A
Low voltage lighting – 3A
Fans and ventilation equipment – 3A
LED – 300W
Can this be used with a 3kW heater?
Yes – it can run up to 3kW resistive load
Can you install multiple time switches to control the same load?
Yes, the switches need to be wired in parallel
How do I do the trigger wiring?
