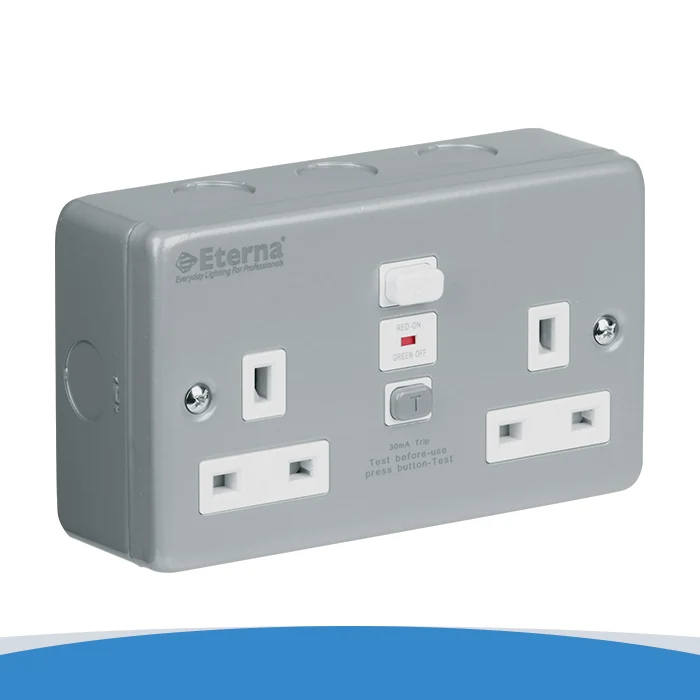

Simple to install 2-gang unswitched passive RCD socket with durable metal clad exterior, perfect for providing local electrical protection in garages, workshops or warehouses

• Pressed steel construction with screwed faceplate

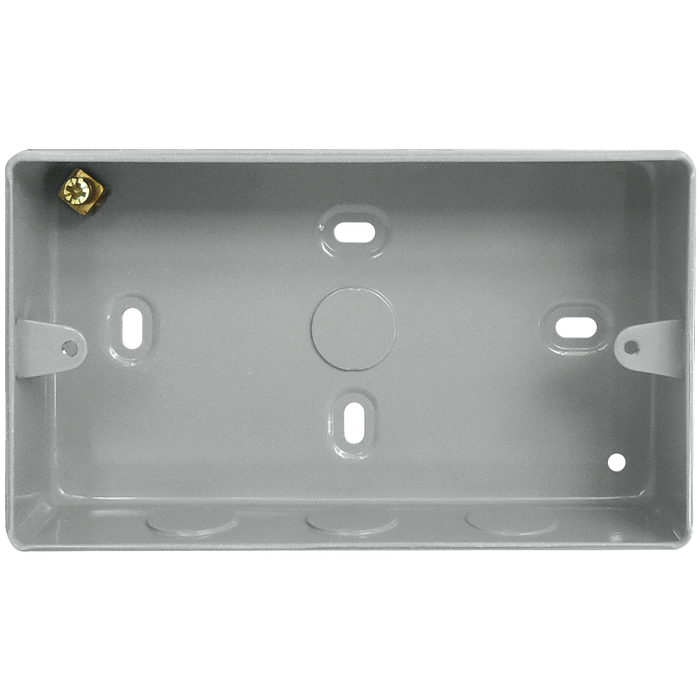

• Easy cable-entry via knock-outs available on the surface mounting box
• Type A rated to ensure tripping for residual a.c. currents and pulsating d.c. currents
• 13A fused spur with “passive” 30mA RCD protection at less than 40ms (typical)
• Complete with TEST button
• Twin earth terminals for easy cable connections
• Mechanical latching (no need to reset after power loss)
• M.O.M: 5 / O.P.Q: 30

Why change from AC to A rating?

The wiring regulations BS7671:2018 AMD 2 (2022) Issued March 2022, states that RCD Type AC can only be used when the load current contains no known DC components. Therefore it is advisable for the more recent A rated RCDs be used wherever the AC supply is converted by the appliance, to the required DC level for the internal operation of the electronic control components, in such as IT equipment, multimedia, washing machines and lighting controls.
