VECOF10PIR

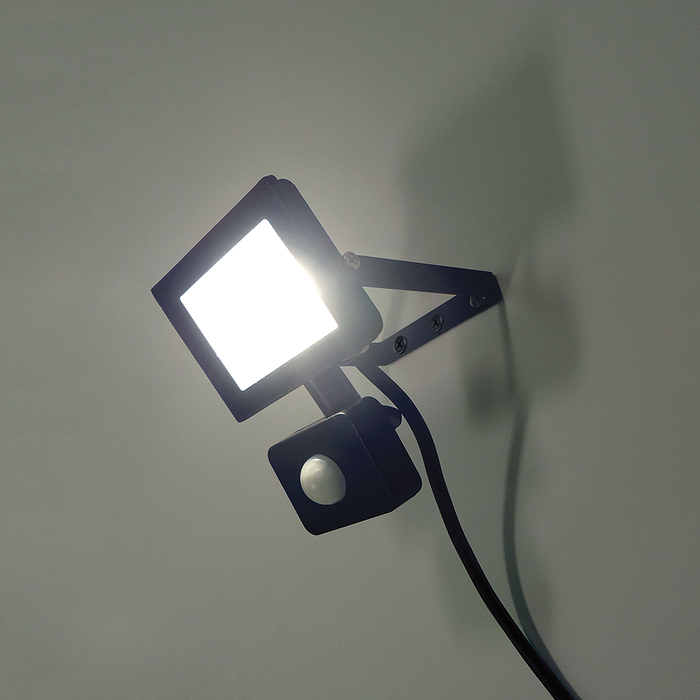

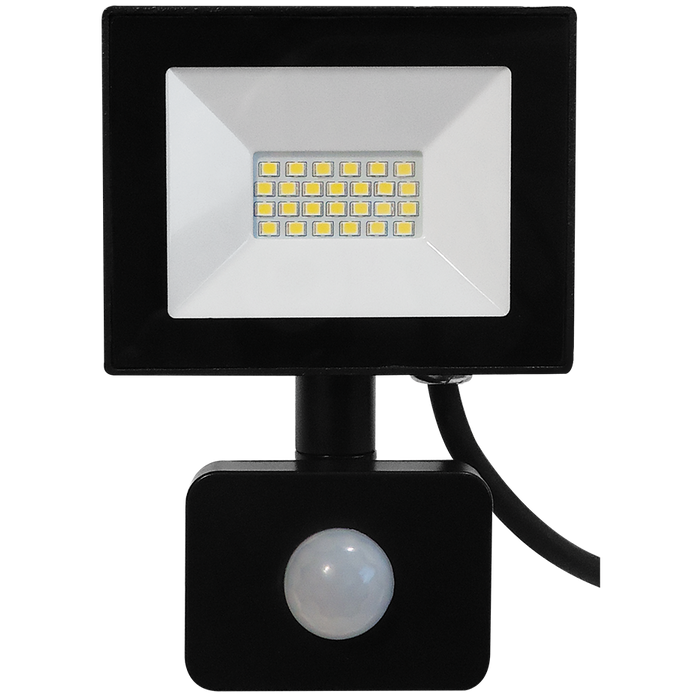

10W IP44 economy LED floodlight with 120° PIR
10W | 4000K | 850 lm | 25,000 hrs | IP44 | 120° PIR
VECOF10PIR
10W | 4000K | 850 lm | 25,000 hrs | IP44 | 120° PIR
Features
- Aluminium body with tempered glass diffuser
- Pre-wired with 30cm flex
- Quick fix bracket
- Vertically and horizontally adjustable PIR
- Time on adjustment: 10 sec ± 3 sec – 10 min ± 3 min
- 120° detection angle
- 8 metre detection range
- Lux level adjustments: 10 Lux ~ 2000 Lux
- M.O.M: 1 / O.P.Q: 40
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 850 lm |
| Lumens from chip (no diffuser) | 1000 lm |
| Useful lumens | 800 lm |
| Rated Wattage | 10W |
| Rated luminous flux | 800 lm |
| Nominal life time of the lamp | 25,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | ≥15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | 0.5s |
| Nominal beam angle | 120° |
| Rated power wattage | 10W |
| Rated lamp lifetime | 25,000 hrs |
| Lamp power factor | >0.9 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | <0.5s |
| Colour rendering | ≥80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated beam angle | 120° |
| Voltage / Frequency | 240V~50Hz |
| Lumens per watt | |
| Weight (kg) | |
| TSI Code | 406600376 |
| Not suitable for accent lighting | |
