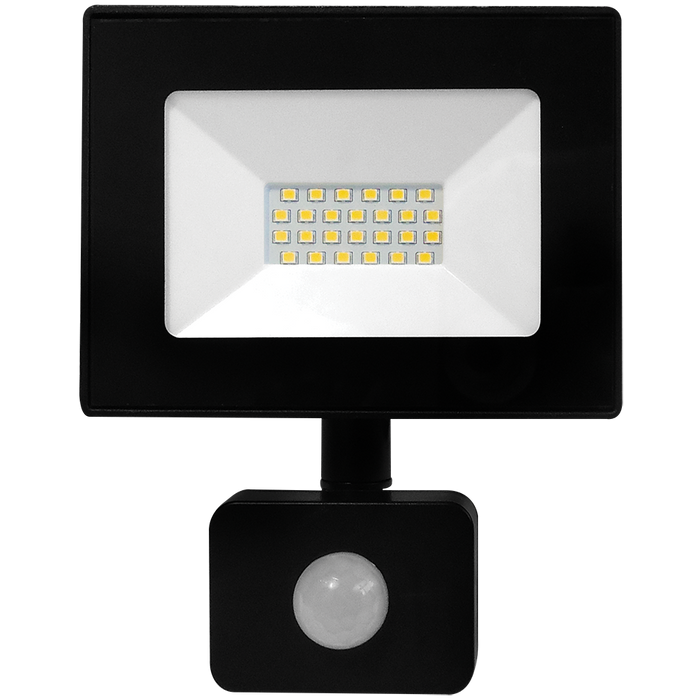

VECOF20PIR

20W IP44 economy LED floodlight with 120° PIR

20W | 4000K | 1700 lm | 25,000 hrs | IP44 | 120° PIR



         icon-led

VECOF20PIR

20W | 4000K | 1700 lm | 25,000 hrs | IP44 | 120° PIR



         icon-led

SKU: 5013845054058 Categories: ,
Categories: Floodlighting
SKU: 5013845054058
More Information
Features
  • Aluminium body with tempered glass diffuser
  • Pre-wired with 30cm flex
  • Quick fix bracket
  • Vertically and horizontally adjustable PIR
  • Time on adjustment: 10 sec ± 3 sec – 10 min ± 3 min
  • 120° detection angle
  • 8 metre detection range
  • Lux level adjustments: 10 Lux ~ 2000 Lux
  • M.O.M: 1 / O.P.Q: 30
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 1700 lm
Lumens from chip (no diffuser) 2200 lm
Useful lumens 1600 lm
Rated Wattage 20W
Rated luminous flux 1600 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure ≥15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? 0.5s
Nominal beam angle 120°
Rated power wattage 20W
Rated lamp lifetime 25,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life 70%
Starting time <0.5s
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt
Weight (kg)
TSI Code 406600389
Not suitable for accent lighting
