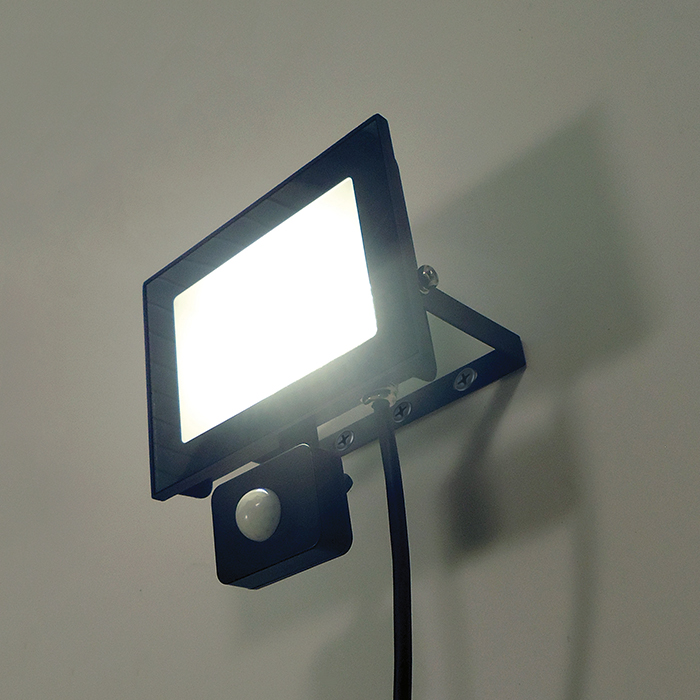

VECOF30PIR

[vc_row fullwidth="true" fullwidth_content="false"][vc_column][vc_tabs style="simple" container_bg_color="#ffffff"][vc_tab title="Features" tab_id="1478541347-1-6152da-1d00b6dd-d35604eb-9cdd"][mk_custom_list style="mk-moon-checkmark" margin_bottom="39" align="left" animation="fade-in"]

• Aluminium body with tempered glass diffuser
• Pre-wired with 30cm flex
• Quick fix bracket
• Vertically and horizontally adjustable PIR
• Time on adjustment: 10 sec ± 3 sec - 10 min ± 3 min
• 120° detection angle
• 8 metre detection range
• Lux level adjustments: 10 Lux ~ 2000 Lux
• M.O.M: 1 / O.P.Q: 20

[/mk_custom_list][vc_single_image image="18226" img_size="full"][/vc_tab][vc_tab title="Specification" tab_id="1478707635562-3-452da-1d00b6dd-d35604eb-9cdd"][mk_table]

Lamp Specifications:
Luminaire lumens (with diffuser)	2500 lm
Lumens from chip (no diffuser)	3200 lm
Useful lumens	2400 lm
Rated Wattage	30W
Rated luminous flux	2400 lm
Nominal life time of the lamp	25,000 hrs
Colour temperature	4000K
Number of switching cycles before premature lamp failure	≥15,000
Warm-up time up to 60 % of the full light output	Instant full light
Is this product dimmer compatible?	0.5s
Nominal beam angle	120°
Rated power wattage	30W
Rated lamp lifetime	25,000 hrs
Lamp power factor	>0.9
Lumen maintenance factor at end of nominal life	70%
Starting time	<0.5s
Colour rendering	≥80 Ra
Colour consistency	Within a 6 step Macadam ellipse
Rated beam angle	120°
Voltage / Frequency	240V~50Hz
Lumens per watt	Up to 76 lm / W
Weight (kg)
TSI Code	406600392
Not suitable for accent lighting
