VECOIFIRE4

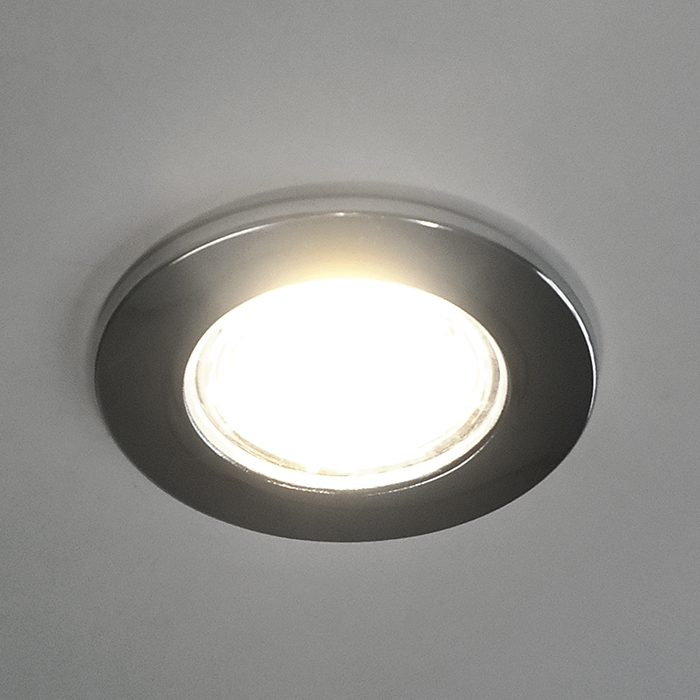

Economy LED IP65 Fire Rated 4000K Dimmable Downlight

5W | 4000K | 560 lm | 36,000 hrs | IP65



         icon-led



VECOIFIRE4

5W | 4000K | 560 lm | 36,000 hrs | IP65



         icon-led



Categories: Downlights, EternaEco, New Products
SKU: 5013845055031
More Information
Features

PLEASE NOTE: due to the huge variety of dimmers in the market, dimming performance with all types cannot be guaranteed, compatibility should be tested before installation.

  • Pressed steel construction
  • Fire rated tested for individual 30, 60 and 90 min ceiling types
  • Dimmable – for optimum dimming performance we recommend using a compatible LED dimmer
  • Foam bezel seals against air permeability
  • 60° beam angle
  • Hole cut out dimension – 60mm
  • Integrated chrome bezel with additional satin nickel and white bezels also included
  • Push terminals
  • Insulation bracket available separately – VECOIBRACK
  • M.O.M: 1 / O.P.Q: 40
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 560 lm
Lumens from chip (no diffuser) 640 lm
Useful lumens 530 lm
Rated Wattage 5W
Rated luminous flux 530 lm
Nominal life time of the lamp 36,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? Yes
Nominal beam angle 60°
Rated power wattage 5W
Rated lamp lifetime 36,000 hrs
Lamp power factor >0.8
Lumen maintenance factor at end of nominal life ≥0.70
Starting time <0.1s
Colour rendering ≥80
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 300cd
Rated beam angle 60°
Voltage / Frequency 240V~50Hz
