VECORDL12

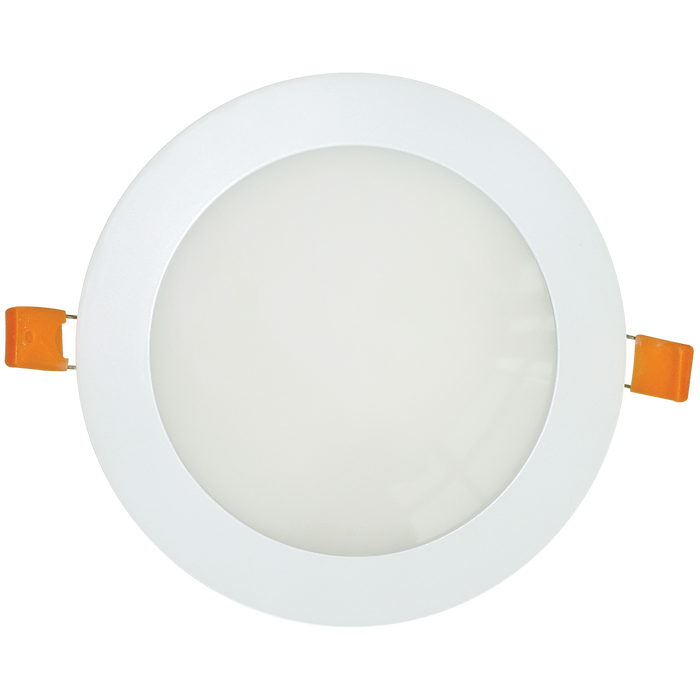

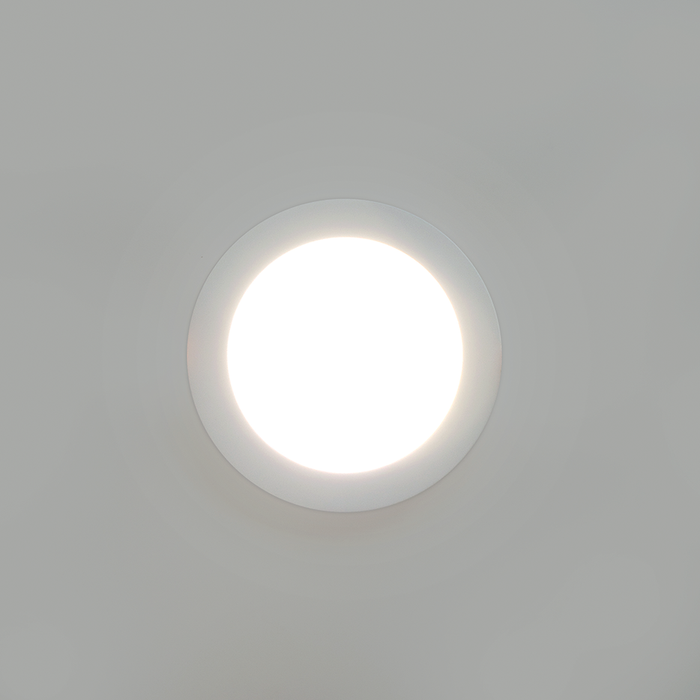

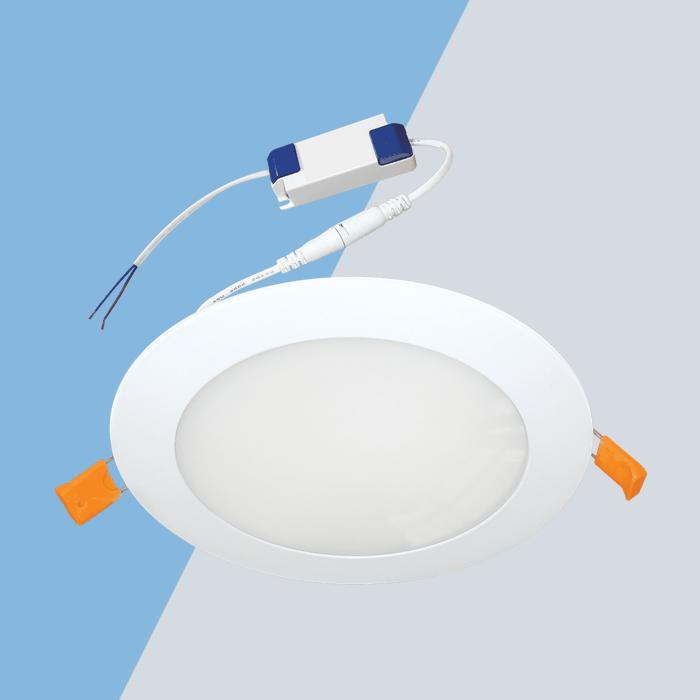

12W Economy recessed LED downlight
White | 12W | 4000K | 1200 lm | 25,000 hrs | IP20
VECORDL12
White | 12W | 4000K | 1200 lm | 25,000 hrs | IP20
Features
- Aluminium construction
- Multiple low power LED array: even, shadow free diffused light output
- Instant start to full illumination
- Unobtrusive design with neutral white trim
- Hole cut out size: 155mm
- 4000K colour temperature: for neutral white appearance
- M.O.M: 1 / O.P.Q: 20
![](https://www.eterna-lighting.co.uk/wp-content/uploads/2018/10/vecordl12_dim.jpg)
![](https://www.eterna-lighting.co.uk/wp-content/uploads/2023/02/ri-110px-replace-led-light-source-pro-e1676633947412.jpg)
![](https://www.eterna-lighting.co.uk/wp-content/uploads/2023/02/ri-110px-replace-control-gear-pro-e1676633971648.jpg)
Specification
Lamp Specifications: | |
---|---|
Luminaire lumens (with diffuser) | 1200 lm |
Lumens from chip (no diffuser) | 1560 lm |
Useful lumens | 1050 lm |
Rated Wattage | 12W |
Rated luminous flux | 1050 lm |
Nominal life time of the lamp | 25,000 hrs |
Colour temperature | 4000K |
Number of switching cycles before premature lamp failure | 15,000 |
Warm-up time up to 60 % of the full light output | 0.5s |
Is this product dimmer compatible? | No |
Nominal beam angle | 115° |
Rated power wattage | 12W |
Rated lamp lifetime | 25,000 hrs |
Lamp power factor | >0.5 |
Lumen maintenance factor at end of nominal life | >70% |
Starting time | <0.5s |
Colour rendering | ≥80 Ra |
Colour consistency | Within a 6 step Macadam ellipse |
Rated peak intensity | 292.34cd |
Rated beam angle | 115° |
Voltage / Frequency | 240V~50-60Hz |
Lumens per watt | |
Weight (kg) | |
TSI Code | 406600538 |
Not suitable for accent lighting |
Downloads
Product Information
You will need Adobe Acrobat Reader to access and print PDFs.
Maintenance & Disassemble
