Vinko Surface Mount Downlight.

Vinko Surface Mount Downlight Power CCT Switchable

COMING SOON

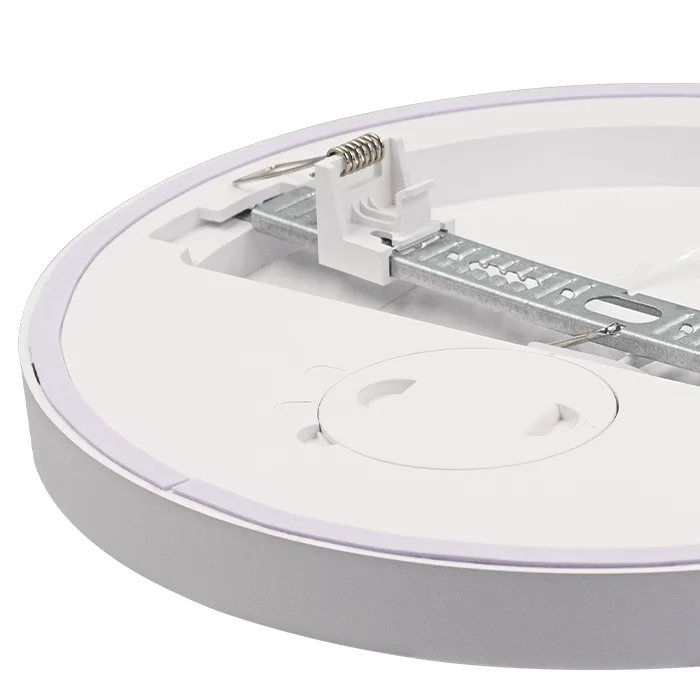

The Vinko surface mount downlight has been designed with power and temperature selectable options. Its adjustable mounting bracket makes it perfect for both retrofit and new installations.

Suitable for domestic, residential or commercial locations. This fitting combines sleek design bringing effortless style and efficiency.

  • Power selectable
  • Colour temperature selectable: 3000K/4000K/6000K
  • Up to 122lm/W
  • Surface mounting option
  • Recessed mounting to fit pre-existing cut outs
  • IP40 From the front

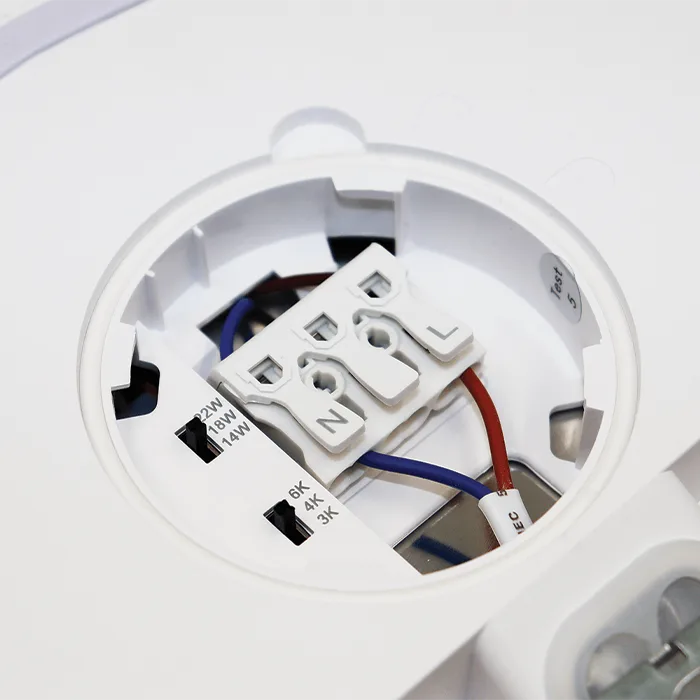

  • Loop in, loop out push fit terminals
  • 5 year warranty
Model Variations:
E08VN23AC: 235mm Vinko Surface Downlight | Download Spec Sheet
E08VN30AC: 300mm Vinko Surface Downlight | Download Spec Sheet

SPECIFICATION

- +
Light SourceLED
FinishWhite
Construction MaterialsABS
Construction Materials 2PS
Nominal Voltage240
Wattage9W-22W
Colour Temperature3000K/4000K/6000K
Beam Angle120
Lumens1100-2642
LMW118-122lm/W
CRI80
IP/IK RatingIP40
Average Rated Life25,000
Product Warranty5 Years

DOWNLOADS

- +
Install Guide Download
IES photometric data file Download

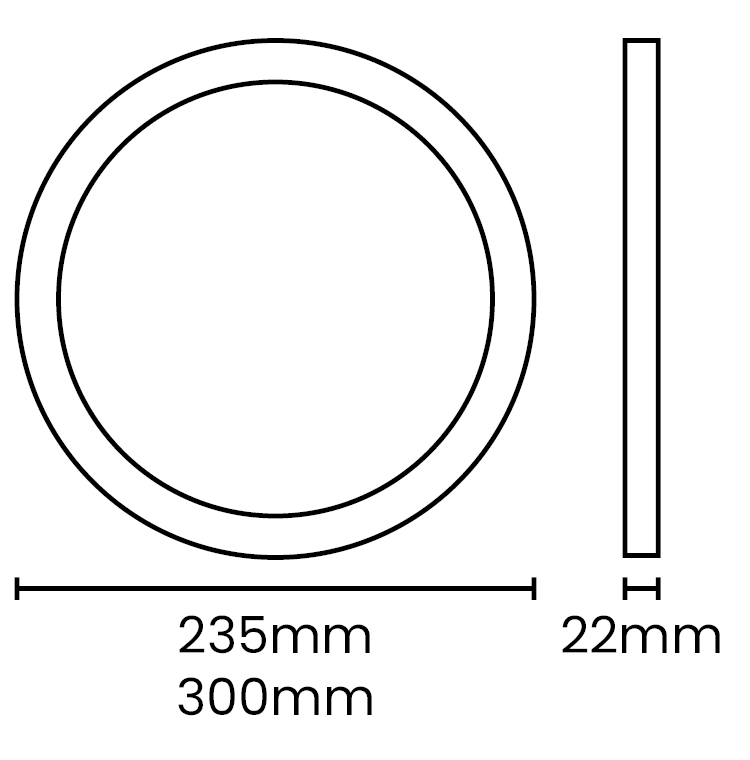

Dimensions Drawing Download
