KFIRE4CR

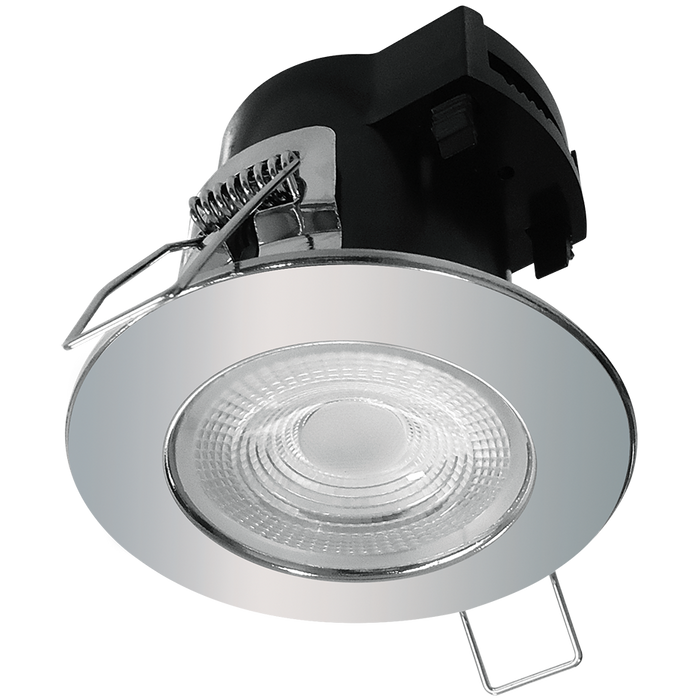

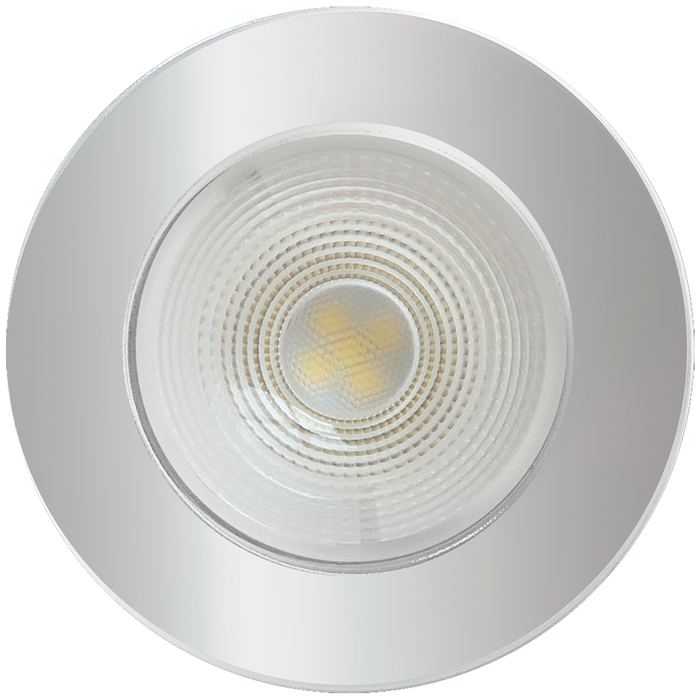

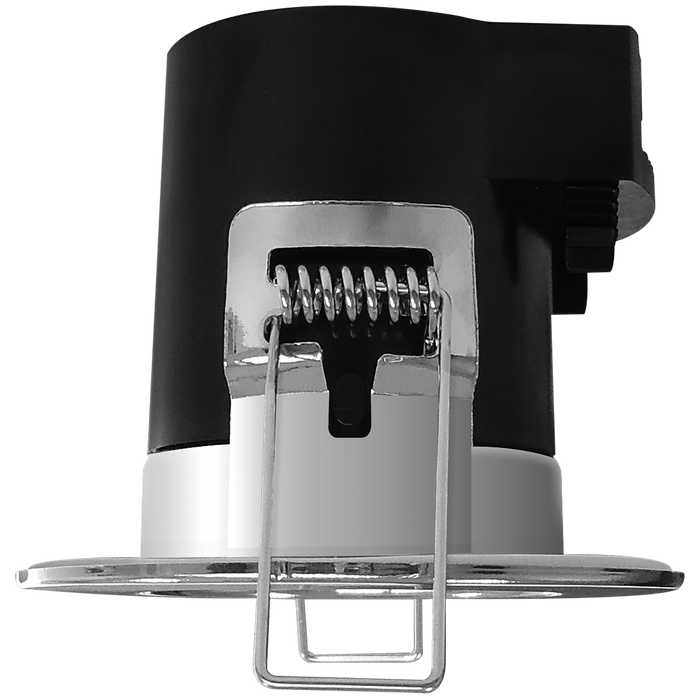

5W LED IP65 Fire Rated IP65 Dimmable Downlight

Polished Chrome | 5W | 4000K | 515 lm | 25,000 hrs | IP65 (front) / IP20 (rear)



         icon-led

KFIRE4CR

Polished Chrome | 5W | 4000K | 515 lm | 25,000 hrs | IP65 (front) / IP20 (rear)



         icon-led

SKU: 5013845057516 Categories: , ,
Categories: Downlights, Vanilla
SKU: 5013845057516
More Information
Features

Compact and convenient design with high quality loop in, loop out terminal block.

  • Fire Rated – individually tested within 30, 60 and 90 minute ceiling constructions
  • Dimmable – a compatible LED dimmer is recommended for optimum dimming performance
  • Foam bezel seals against air permeability
  • Compact and convenient design
  • 40° beam angle
  • Push terminals
  • Loop-in Loop-out wiring facility
  • M.O.M: 1 / O.P.Q: 20
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 515 lm
Lumens from chip (no diffuser) 600 lm
Useful lumens 420 lm
Rated Wattage 5W
Rated luminous flux 420 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 12,500
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? Yes
Nominal beam angle 40°
Rated power wattage 5W
Rated lamp lifetime 25,000 hrs
Lamp power factor 0.8
Lumen maintenance factor at end of nominal life 70%
Starting time <0.5s
Colour rendering 80
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 649cd
Rated beam angle 40°
Voltage / Frequency 240V~50Hz
Downloads

You will need Adobe Acrobat Reader to access and print PDFs.


FAQ

What are the ceiling constructions?

30 and 60 min ceiling constructions with I-Joists
